John Deere 6090, 9.0L Engine Inframe Overhaul Rebuild Kit, Early Low Compression Piston RE529264

$3,359.37

Price may change upon customizations.

Engine Kit Type:

* denotes required field

Main Bearing Size*
Rod Bearing Size*
Brand: HDP
Mfg Warranty:
Heavy Duty Pros Quality Aftermarket Parts

Superior Quality Parts: Heavy Duty Pros parts meet and exceed the OEM quality specifications.

Heavy Duty Pros Fast Shipping Aftermarket Parts

Fast Shipping: We ship from warehouses across the US to ensure the quickest delivery.

Heavy Duty Pros Customer Service Aftermarket Parts

Expert Technical Advice: Industry repair technicians are standing by to provide expert advice for your repair.

Heavy Duty Pros Competitive Savings on Aftermarket Parts

Huge Savings: We offer competitive online pricing for significant savings.

Product Details & Specifications
John Deere 9.0L Tier 2 & Tier 3 - 2006-2013 year engines.

Our engine rebuild kit includes Cylinder Kit DZ10211, which contains Piston RE52964

Important: This kit will not work on Tier 4 engines. If your engine uses Cylinder Kit DZ110134, which contains Piston RE555132, you have a Tier 4 engine. We do not currently offer an engine rebuild kit for Tier 4 engines.

Bore: 4.664 in 118.35 mm
Stroke: 5.400 in 136 mm
Piston: RE52964

6090HF484, 6090HFG86, 6090HN005, 6090HH008, 6090HT009, 6090HT007

Agricultural: 2854, 3520, 3522, 4930, 4940, 7180, 7200, 7250, 7660, 8030, 8130, 8230, 8330, 8430, 8530, 9230, 9580, 9640, 9660, 9680, 1270D, 1270E, 1270G, 1470D, 1470E, 1470G, 1710D, 1711D, 1910E, 250D, 300D, 350DLC, 350GLC, 3754D, 380GLC, 670G, 670GP, 672G, 672GP, 703JH, 724K, 744K, 753J, 753JH, 759J, 759JH, 770G, 770GP, 772G, 772GP, 8130 ILS, 8130 MFWD, 8225R ILS, 8225R MFWD, 8230 ILS, 8230 MFWD, 8230T, 8235R, 8245R, 245R ILS, 8245R MFWD, 8260R, 8270R, 8270R ILS, 8270R MFWD, 8285R, 8295R, 8295RT, 8310R, 8310RT, 8320R, 8320RT, 8320T, 8330 ILS, 8330 MFWD, 8330T, 8335R, 8335RT, 8345R, 8345RT, 8360R, 8360RT, 8370R, 8370RT, 8430 ILS, 8430T, 8530 ILS, 903K, 903KH, 909K, 909KH, 953K, 9560 STS, 9560i STS, 959K, 9660 STS, 9670 STS, 9760 STS, 9770 STS, 9780CTS, C670, E330LC, E360, R4038, S560, S660 STS, S670, S670 STS, T560, T660, T670, W650, W660
AKSA: APD-AT250
Construction: 850J, 872G, 850JR, 872GP, 870G, 870GP
Hi Power: HJW 225 T6, HJW 275 T6, HRJW 250 T6, HRJW 310 T6
SDMO Generator: R260UC3, R275C3E, R275RC, R330C3, R330RC, R330C3E
Vermeer: T655iii

Per John Deere specifications, cylinder head bolts need to be changed during the rebuild process of this engine. John Deere number is RE528399.

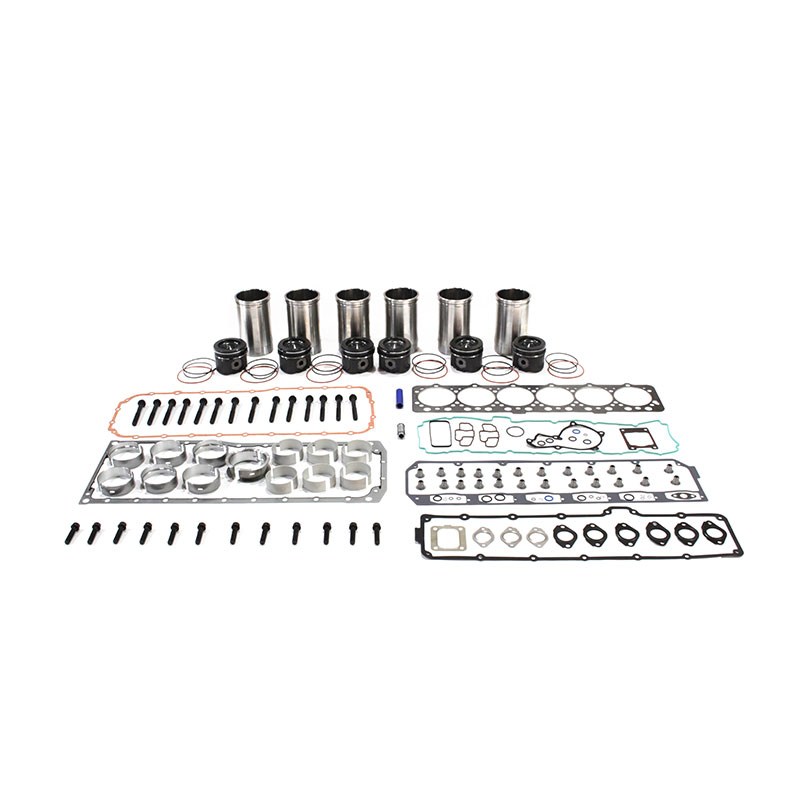

Inframe Kit Includes:
(6) Cylinder Kits (Piston, Liner, Piston Rings, Piston Pin, Pin Retainers)
(6) Rod Bearing Pairs
(1) Main Bearing Set
(1) Head Gasket Set
(1) Oil Pan Gasket
(12) Rod Bolts

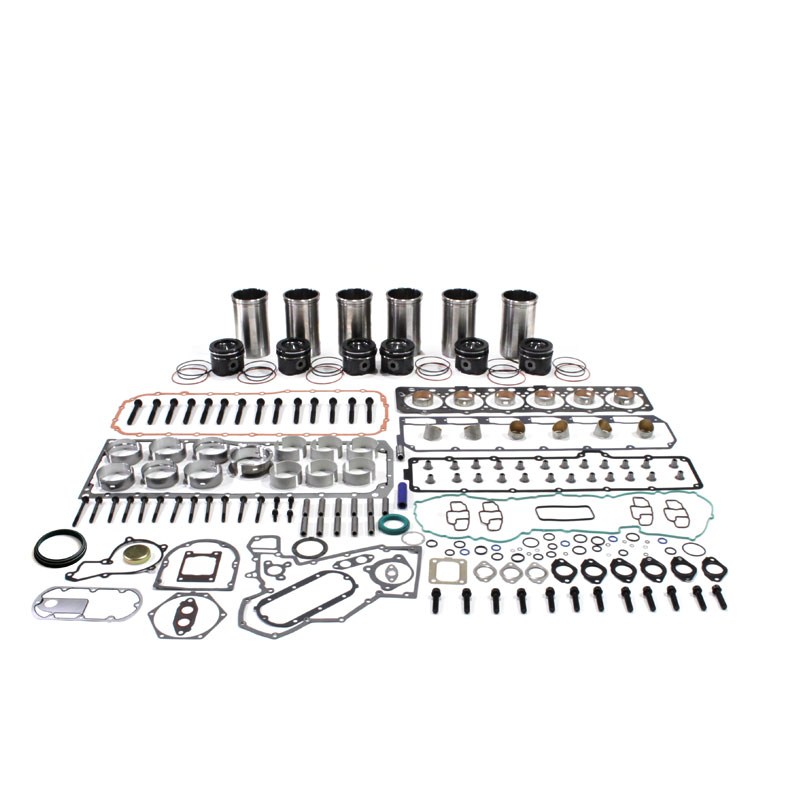

Overhaul Kit Includes:
(6) Cylinder Kits (Piston, Liner, Piston Rings, Piston Pin, Pin Retainers)
(6) Rod Bearing Pairs
(1) Main Bearing Set
(1) Overhaul Gasket Set
(12) Rod Bolts
(1) Fuel System Grommet Set
(1) Rear Crankshaft Seal
(1) Front Crankshaft Seal
(6) Piston Pin Bushings
(6) Camshaft Bushings

replaces RP1354, RP1355, TIK10599, TDZ10599
